# Command History

OpenWiFi SDK 2.0

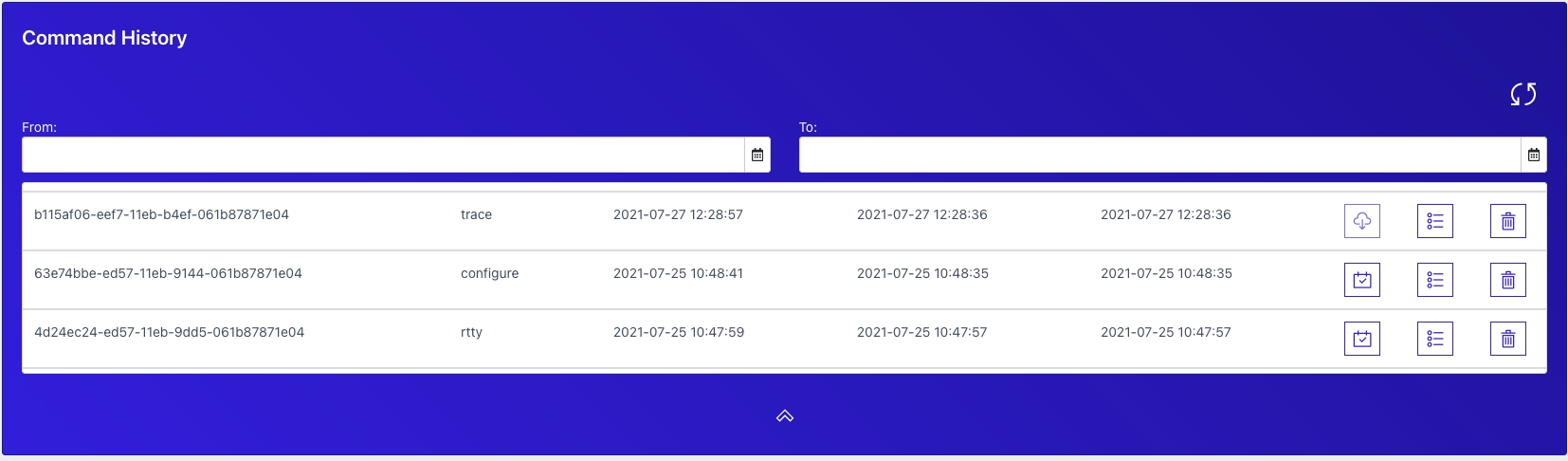

Multiple events are recorded in the Command History tile. Each line item will have a Result, Details, and Delete action.

![Command History Tile](https://content.gitbook.com/content/4jndIdbnVuxkv0YY1wQV/blobs/a7n2zGarM1BsTvCtsfGZ/Screen%20Shot%202021-07-29%20at%203.10.22%20PM.png)

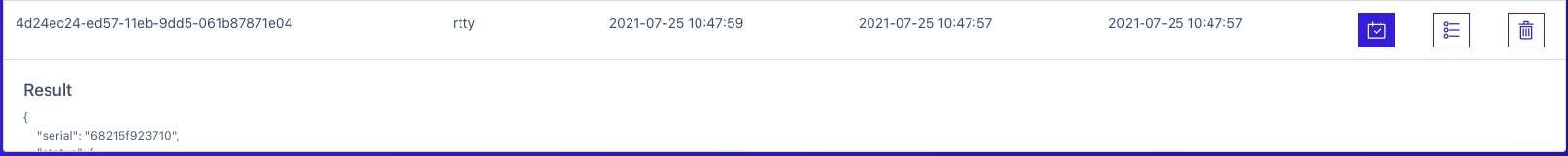

When an rTTY session is executed, this is a displayed command history. Selecting the Result icons will display the Success or Fail of the command.

![rTTY Command History](https://content.gitbook.com/content/4jndIdbnVuxkv0YY1wQV/blobs/vUkTJAcdHEZDT8F2n71N/Screen%20Shot%202021-07-29%20at%203.12.02%20PM.png)

Each provisioning event is reflected as a configure command history. To see the entire JSON payload and the result, including success or error with message, simply select Details to expand the dialog below with this data. A date and time in the third column indicates when the configure command was executed successfully.

![Configure Command History](https://content.gitbook.com/content/4jndIdbnVuxkv0YY1wQV/blobs/6qiq3o9D0MXSia2J9L2o/Screen%20Shot%202021-07-29%20at%203.12.27%20PM.png)

If a provisioning event has failed to complete, its command history for configure will show as pending.

![configure Pending Command History](https://content.gitbook.com/content/4jndIdbnVuxkv0YY1wQV/blobs/TCwZ998cyQaBrugA6udC/Screen%20Shot%202021-07-29%20at%203.18.12%20PM.png)

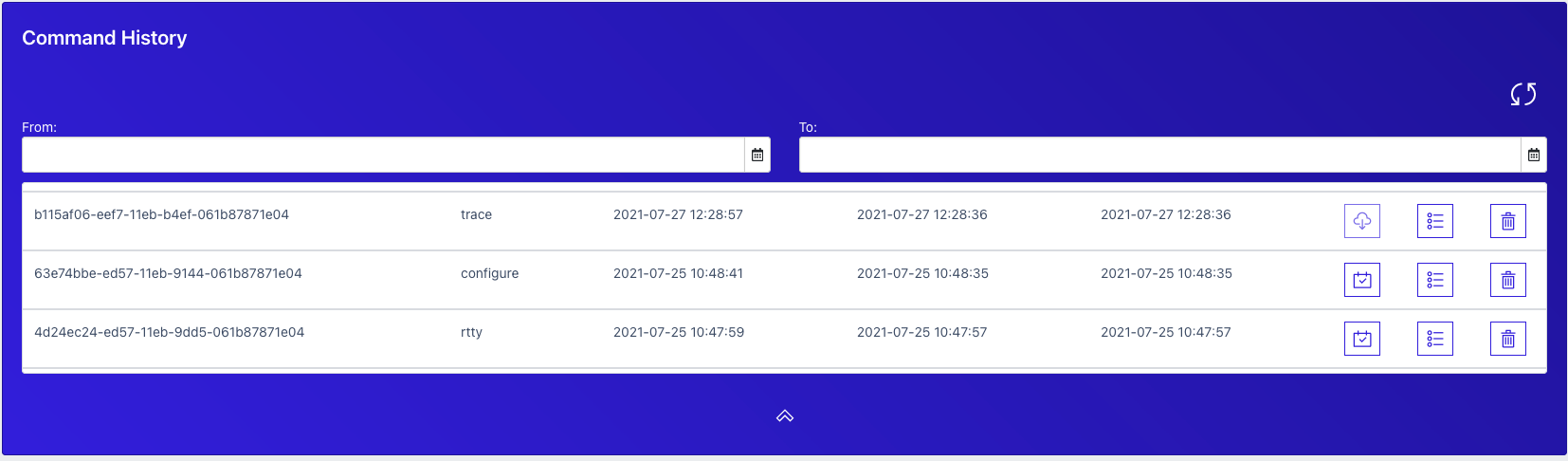

Remote packet capture is shown as the trace command history. When packet captures are persisted in the OpenWiFi SDK, they may be downloaded again through the cloud download icon.

![trace Command History](https://content.gitbook.com/content/4jndIdbnVuxkv0YY1wQV/blobs/bSVhuhN9TGZAJaNJFv8O/Screen%20Shot%202021-07-29%20at%203.16.52%20PM.png)
